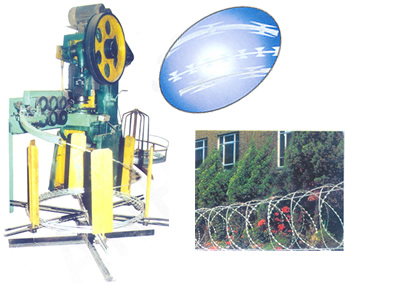

Razor Barbed Wire Machine |
 |
Anhua provides razor barbed wire machine to produce different sizes of razor barbed wire.
Output of 24 hours: 500kgs.
It is equipped with cutters of 5 different shapes.
Razor barbed wire coil diameter: 450mm; 500mm; 700mm; 960mm.
Razor barbed wire material: Galvanized wire and stainless steel wire. |
| |
 |
| |

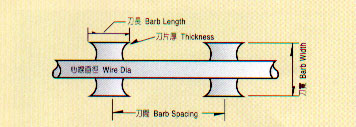

A1 |
|
- Thickness:0.5mm
- Wire Dia.:2.5mm
- Barb Length:10mm
- Barb Width:13mm
- Barb Spacing:26mm
|
A2 |
|
- Thickness:0.5mm
- Wire Dia.:2.5mm
- Barb Length:20mm
- Barb Width:15mm
- Barb Spacing:33mm
|
A3 |
|
- Thickness:0.5mm
- Wire Dia.:2.5mm
- Barb Length:15mm
- Barb Width:15mm
- Barb Spacing:33mm
|
A4 |
|
- Thickness:0.5mm
- Wire Dia.:2.5mm
- Barb Length:22mm
- Barb Width:16mm
- Barb Spacing:36mm
|
A5 |
|
- Thickness:0.6mm
- Wire Dia.:2.5mm
- Barb Length:60mm
- Barb Width:22mm
- Barb Spacing: 102mm
|
|
| |
Coil Dia.(mm) |
500 |
700 |
960 |
450 |
Number of Circles |
56 |
72 |
52 |
33 |
Standard Covered Length (m) |
8-9 |
11-13 |
8-10 |
8 |
Maximal Covered Length |
12 |
15 |
13 |
12 |
|
|
 |
 |
 |
 |
|
|
